Becker rotary air pumps
1. Rotary air pumps
German rotary blowers "Becker" models DT/KDT/DTLF are designed to create low pressure. Their use is possible only with normal atmospheric air. The blowers are not used for toxic and flammable substances. Technical characteristics are maintained up to a height of 800 m above sea level.
The simple design with a single shaft and direct drive allows you to achieve strength and durability in the operation of the device with minimal maintenance and operating costs.
All parts of the unit do not require oil. The sealing of the working chambers is achieved by means of rotating blades made of special environmentally friendly materials with a high degree of tightness and wear resistance.
DT 4.4, DT 4.6/0-61, DT 4.8
(air volume up to 8 m3/h)
DT 4.10, DT 4.16, DT 4.25K, DT 4.40K
(air volume from 10 to 40 m3/h)
KDT 3.60, KDT 3.80, KDT 3.100, KDT 3.140
(air volume from 54 to 129 m3/h)
DTLF 200, DTLF 250, DTLF 360, DTLF 400, DTLF 500
(air volume from 174 to 500 m3/h)
2. Duct blowers
German ducted blowers «Becker» SV models are designed to produce pressure or vacuum and are used for aeration of domestic and industrial wastewater. The units are not demanding on maintenance, are durable, are not susceptible to moisture, and achieve the highest efficiency. The operation of the unit is environmentally safe for the atmosphere, since the exhaust air does not contain lubricants.
Principle of operation
The working chamber of the vortex compressor consists of hollow rings located in the upper and lower parts of the housing and in the impeller equipped with blades on both sides. When the impeller rotates, the air in the blade chambers is centrifuged outwards and compressed by centrifugal force. It enters the side channel and then into the next chamber. The process is repeated many times and compresses the air in several stages.

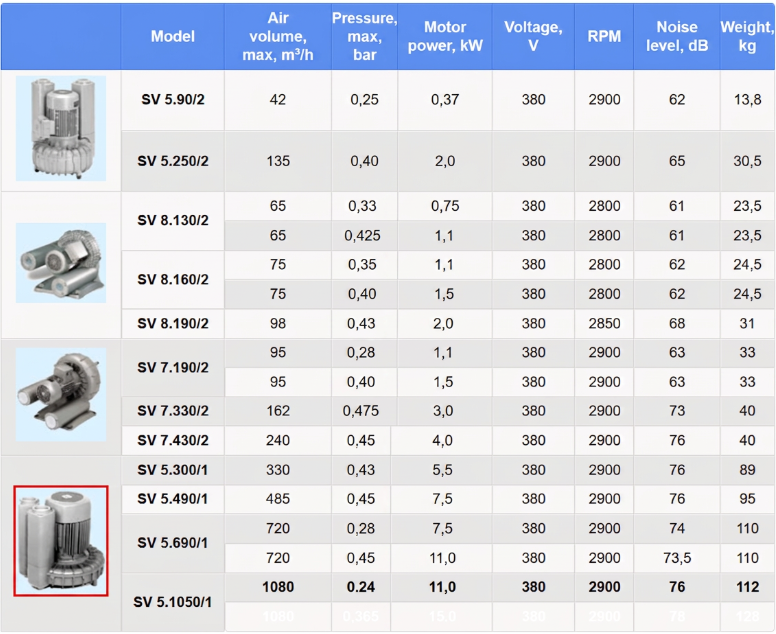

Duct blowers (Germany)
